Feature:
Value for Money: 540 V3 sensored brushless motor has strong torque and stable output power, can improve the overall performance of the RC car.
Reliable Performance: Using high speed accuracy bearings. High purity copper windings maximize electrical conductivity. High Power Solder Tabs. Removable and Replaceable Rotor.
Long lasting performance: Aluminum tail cover. Ultra low internal resistance, reduce motor operating temperature, optimize heat dissipation efficiency, and adjust disassembly time.
Compatible With: Adjustable timing, dual sensor ports, accuracy engineered for maximum energy conversion, compatible with any sensored and sensorless ESC.
Applicable Model: 540 V3 21.5T sensored brushless motor is suitable for 1/10 1/12 remote control off road, drift car, providing you great using experience.

Specification:

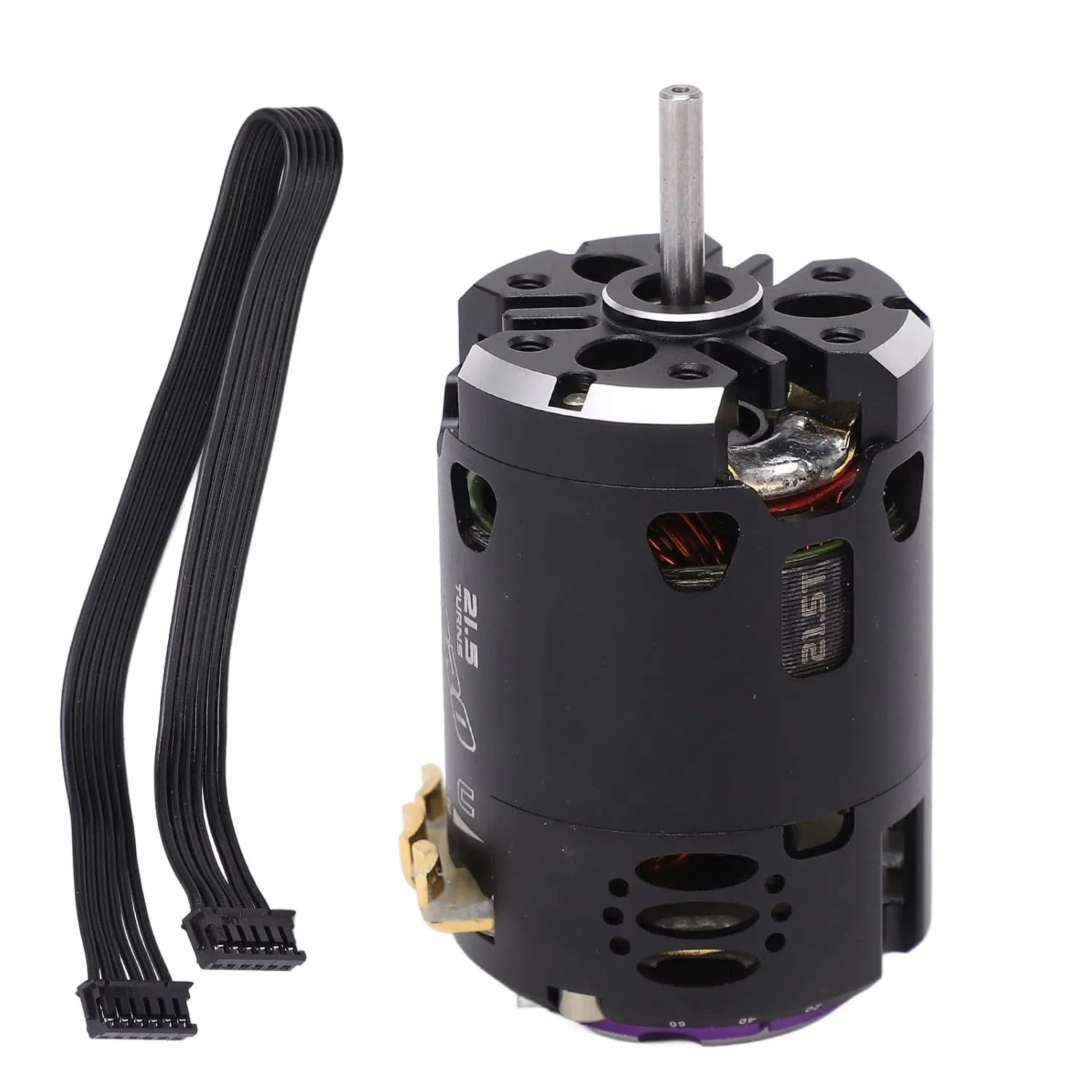

Item Type: 540 V3 Sensored Brushless Motor
Model: 540 V3
Material: Aluminum Alloy, Copper
Color: Black Purple
Weight: Approx. 189g / 6.7oz
KV (RPM/Volt): 1850KV
Output Power: 100W
General Lithium Battery: 1-3S
Maximum Current: 28A
Number of Motor Poles: 2
No Load Current: 7.4V, 0.9A
Resistance (惟): 0.0595
Motor T Number: 21.5T
Product Size:
Motor Diameter: Approx. 35.8mm / 1.4in
Motor Length: Approx. 54mm / 2.1in (without shaft)
Shaft Diameter: Approx. 3.175mm / 0.1in
Shaft Length: Approx. 14.5mm / 0.6in
Rotor Size: Approx. 12.5x7.2mm / 0.5x0.3in
Application: Suitable for 1/10 1/12 RC Off Road, Drift Car

Package List:
1 x Sensored Brushless Motor
1 x Induction Wire
1 x Manual

Note:
1. Please allow 1mm error due to manual measurement. Thanks for your understanding.
2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard.

• Date First Available ‏ : ‎ September 15, 2023
• Manufacturer ‏ : ‎ Pilipane
• Country of Origin ‏ : ‎ China
