- All-new and Unique Stator Design to Provide Strong Torque and high RPM, CNC Machined 7075 Aluminum Heat Sink Housing. Internal Titanium-magnesium Alloy Heat Sink to Reduce heat Loss.
- NSK R2ZZ Bearing Original Imported From Japan, Ensuring Smooth Operation,Thicker Gilding Gold Plated Copper for Maximum Non-resistant Input.American Standard High Purity Copper Windings for Maximum Conductivity.
- Stator Electroplated to Prevent Ageing and Rusting,Adjustable Timing Dual Sensor Port. The explosion-proof rotor made of NdFeB, TURBO Speeds up to 80,000 RPM, 36mm Full Size Outside Diameter Increase Output Power by 15%
- Detachable/Replaceable High Speed Rotor,Patented design of front and rear splicing structure , BRCA& EFRA approved, Meets ROAR &IFMA specifications

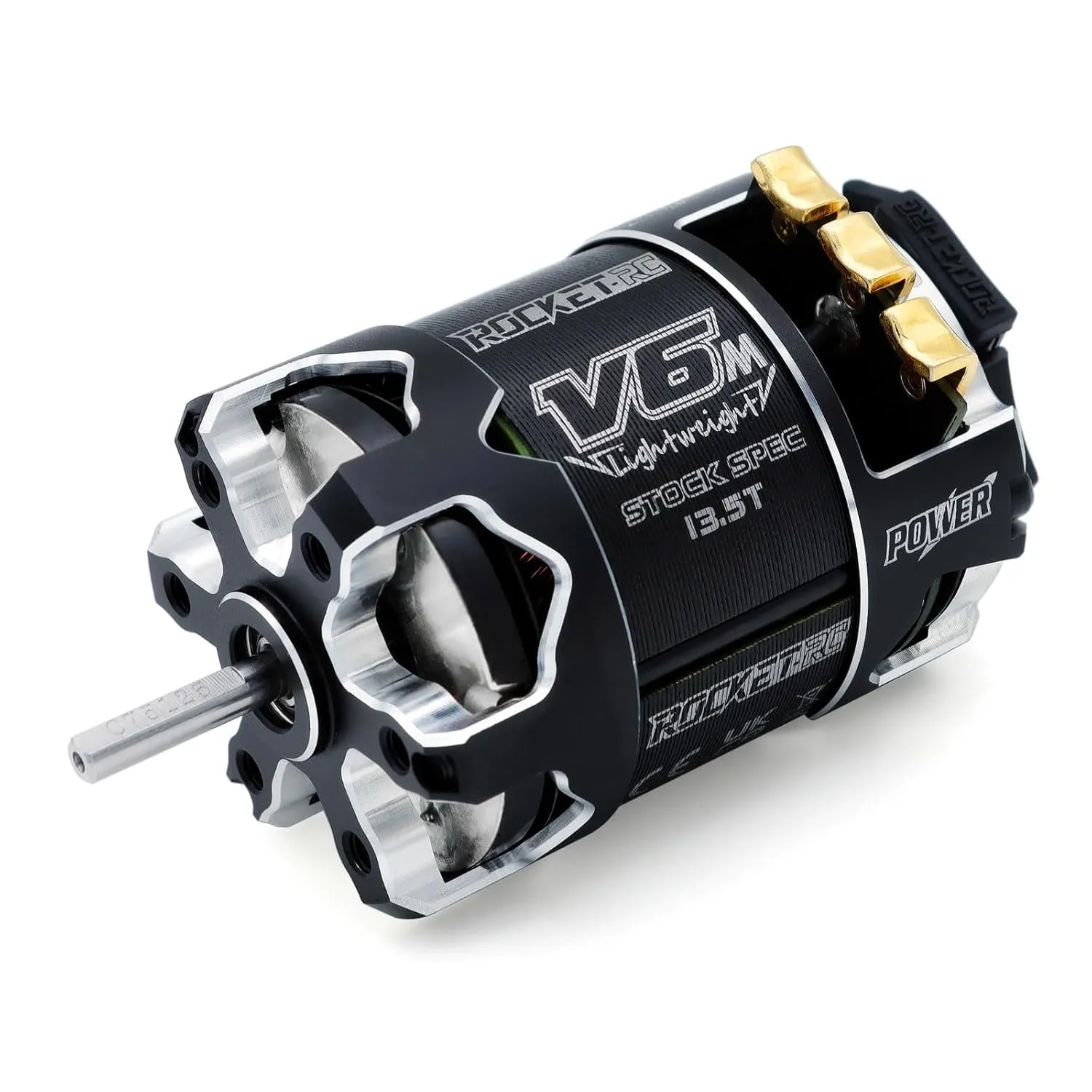

- 540 V6M SENSORED BRUSHLESS MOTOR For any 1/10 scale Racing Car.
Xiangtat Hobby Rocket 540 V6M 13.5T brushless motor is specially designed for 1/10 RC car. It is compatible with sensored/sensorless ESC.
Features:
540 13.5T 3650KV Competition sensored brushless motor,suitable for 1/10 RC car.
Compatible with any sensored /sensorless ESC.
Dual sensor port, convenient to wire.
CNC machined billet 7075 aluminum heatsink can.
High purity copper windings maximizes conductivity.
High power solder tabs.
Removable/replaceable rotor.
Precision engineered for maximum energy conversion.
Adjustable timing.
IFMAR, ROAR,EBRA BRCA compliance.
Specifications:
Size: 540
Design: Sensor
Rotor Poles: 2
Turns: 13.5T
Watts: 100W
Support Battery: 2-3s LiPo
Max Amps: 49A
KV(RPM/Volt): 3650KV
Diameter: 36mm
Length: 54mm
Shaft length: 14.5mm
Shaft diameter: 3.175mm
Rotor: 12.5 * 7.2mm
Type: SPEC
Mounting Hole: M3
Weight: 146g
Package List:
1 * 540 V6 13.5T Sensored Brushless Motor
1 * Sensored Connected Cable
1 * Manual
- Package Dimensions : 4.21 x 2.76 x 1.65 inches; 7.05 ounces
- Date First Available : September 2, 2023
- Manufacturer : Xiangtat
- Country of Origin : China
