- 26mm Soft Tetolon fiber dome tweeter for natural sound.
- Low resonance frequency (1,5 kHz) for best vocal reproduction
- V-cone on woofer for best off-axis response and smooth midrange
- 60Hz Resonance frequency for tight and deep bass response.
- Compact case design featuring air-venting holes and Gold Plated terminal block for best signal transfer
Technical Specifications

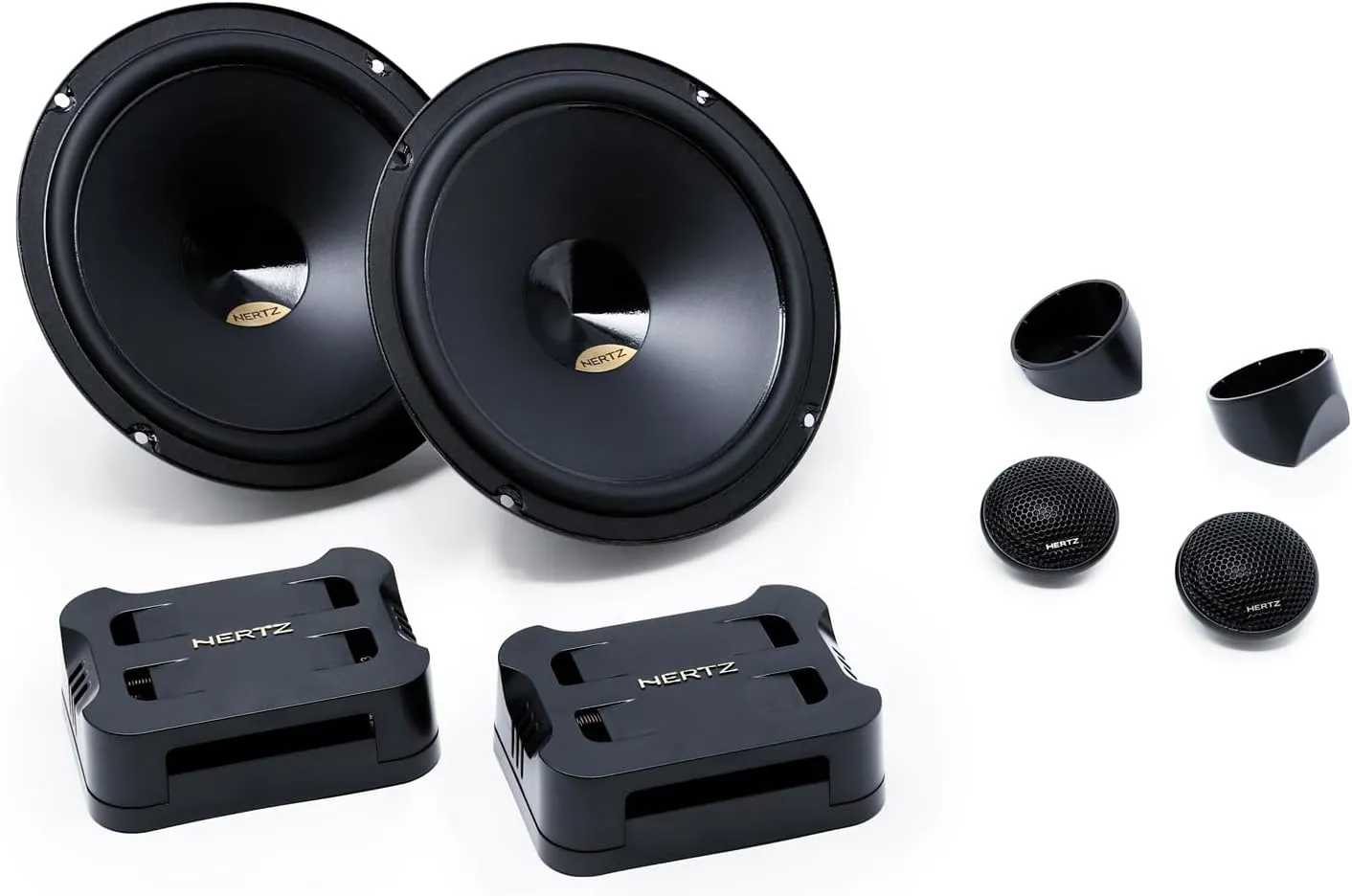

Component - Two way system
Woofer size mm (in.): 165 (6.5)
Tweeter size mm (in.): 26 (1)
Power handling W peak: 160/W continuous: 80
Impedance Ω: 4
Frequency response Hz: 45 ÷ 23k
Sensitivity dB SPL: 93
Woofer Magnet size D·d·h mm (in.): 80 x 40 x 15 (3.15 x 1.57 x 0.59)
Woofer Voice coil Ø mm (in.): 25 (1.0)
Woofer magnet - High density flux ferrite
Tweeter magnet - Neodymium
Woofer cone - Water-repellent pressed paper
Tweeter dome - Tetolon
Woofer weight kg (lb.): 0,74 (1.63)
Tweeter weight kg (lb.): 0,037 (0.08)
Crossover weight kg (lb.): 0,185 (0.41)
Crossover Type - Cut off LO-PASS @ 5Khz - 6dB/oct, HI-PASS @ 5 Khz - 12dB/oct
Electro-Acoustic Parameters
D mm Tweeter: 26, Woofer: 135
Xmax mm Tweeter:-, Woofer: 2,6
Re Ω Tweeter: 3,7, Woofer: 3,3
Fs Hz Tweeter: 1500, Woofer: 62,5
Le mH Tweeter: 0,02, Woofer: 0,2
Vas l Tweeter: -, Woofer: 16,20
Mms g Tweeter: 0,17, Woofer: 11,6
Cms mm/N Tweeter: 0,07, Woofer: 0,56
BL T·m Tweeter: 1,30, Woofer: 4,2
Qts Tweeter: 1,60, Woofer: 0,72
Qes Tweeter: 3,50, Woofer: 0,84
Qms Tweeter: 2,90, Woofer: 5
Spl dB Tweeter: 92, Woofer: 93
- Package Dimensions : 13.43 x 10.04 x 3.82 inches; 4.85 Pounds
- Date First Available : October 17, 2021
- Manufacturer : Hertz
