- 540 13.5T 3200KV, suitable for 1/10 RC car, Compatible with any sensored / sensorless ESC.
- CNC machined billet T6 aluminum heatsink can. Dual sensor port, convenient to wire.
- High purity copper windings maximizes conductivity. High power solder tabs.
- Removable/replaceable rotor. Precision engineered for maximum energy conversion.
- Adjustable timing. IFMAR, ROAR compliance.

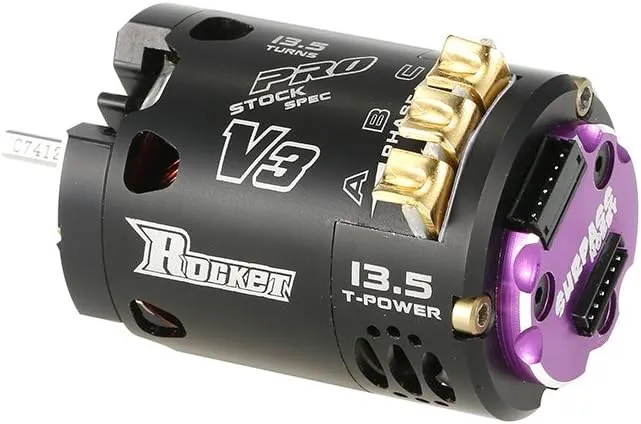

This Surpass Hobby Rocket V3 540 13.5T brushless motor is specially designed for 1/10 RC car. It is compatible with sensored/sensorless ESC.
Features:
540 13.5T 3200KV, suitable for 1/10 RC car.
Compatible with any sensored / sensorless ESC.
Dual sensor port, convenient to wire.
CNC machined billet T6 aluminum heatsink can.
High purity copper windings maximizes conductivity.
High power solder tabs.
Removable/replaceable rotor.
Precision engineered for maximum energy conversion.
Adjustable timing.
IFMAR, ROAR compliance.
Specifications:
Size: 540
Design: Sensor
Rotor Poles: 2
Turns: 13.5T
Watts: 190W
Support Battery: 1-3s LiPo
Max Amps: 49A
KV(RPM/Volt): 3200KV
Diameter: 36mm
Length: 54mm
Shaft length: 14.5mm
Shaft diameter: 3.175mm
Rotor: 12.5 * 7.2mm
Type: SPEC
Mounting Hole: M3
Weight: 159g
Package Information:
Package Size: 11 * 7.0 * 4cm/ 4.3 * 2.8 * 1.6in
Package Weight: 195g/ 6.9oz
Package List:
1 * 540 13.5T Sensored Brushless Motor
1 * Sensored Connected Cable
1 * Manual
