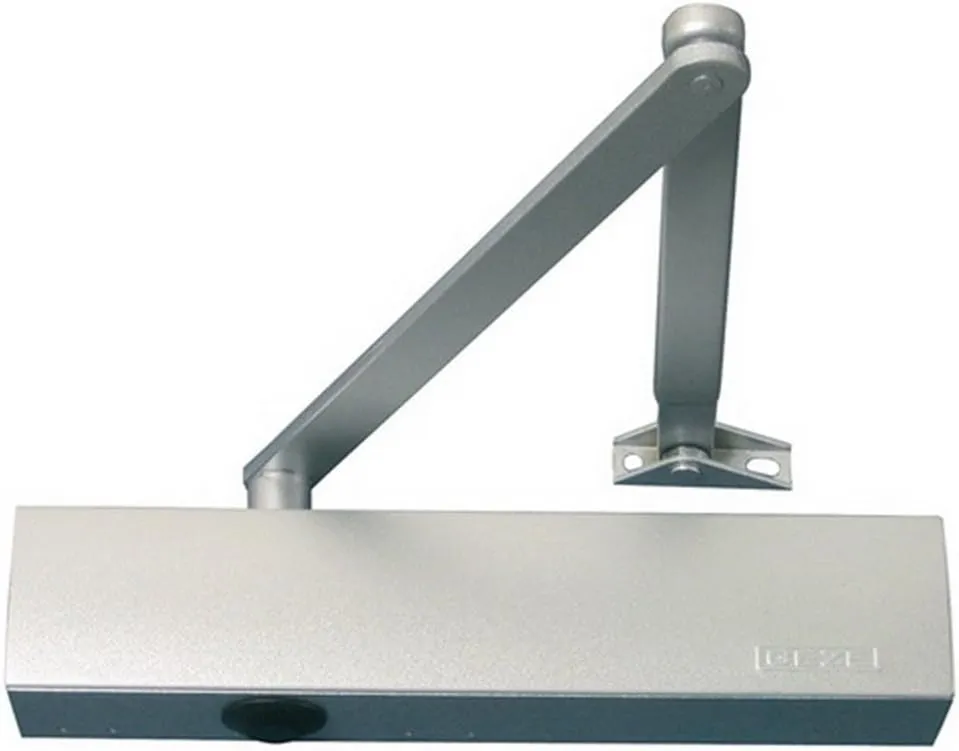

- Linkage lock with tooth drive technology with closing delay up to 30 seconds (not effective in head mounting). Size display and thermostabilised closing speed. All functions can be adjusted from the front, end stop adjustment via linkage, with adjustable opening damping, suitable for smoke and fire doors, DIN left and right. Poles must be ordered separately. Mounting type: normal mounting on strap side and band opposite side, head mounting.
- Design: linkage closure
- Fire and fire doors: yes
- Width (mm): 46
- DIN: left/right
Link closer with tooth drive technology with locking delay up to 30 seconds (not effective in head mounting). Size display and thermostabilised closing speed. All functions can be adjusted from the front, end stop adjustment via poles, with adjustable opening dampening, suitable for smoke and fire doors, DIN left and right. Poles must be ordered separately!Mounting type: normal mounting on band side and opposite of the belt, head mounting on the opposite of the strap. Finish: Fire and fire doors: yes. Width (mm): 46 DIN: left/right. Colour: silver for door width (mm): ≤ 1,400 tested according to: EN 1154. Size: EN 1-6. Manufacturer: GEZE Height (mm): 60 L. length (mm): 287 Mounting Type: Normal Mounting On Tape Side, Head Mounting On Tape Outside. Door width (mm): ≤ 1,400 Type: TS 4000 S
